Lighting > LED Lighting > Spa Electrics > Quantum WN Series
|
|
Unable to find what you are looking for? Send us an email
in Contact Us for a quick reply.
|
|
|
Spa Electrics Quantum WN Series |
 Installation Manual
Multi Plus Manual
Multi Colour Manual
| Light Sources: |
Ceramic Light Engine (LED) |

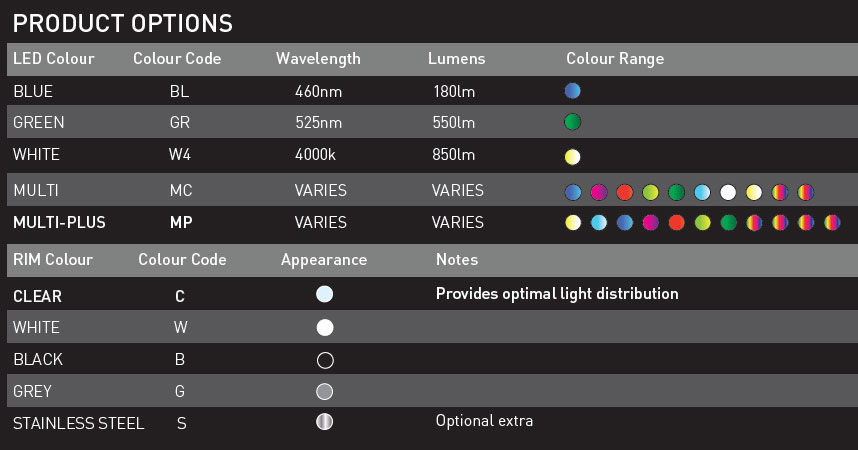

| Available Colours |
MULTI PLUS |
Multi Colour |
| |
Blue (465nm) |
White (4000K) |
| |
Green (525nm) |
MULTI PLUS
Compatibility |
Wall Switch Operation |
| |
iRIS Lighting Controller |
| |
AstralPool Connect 10® |
| |
Pentair IntelliTouch® / EasyTouch® |
| |
Zodiac/Jandy RS (REV R - Current) |
| |
Zodiac TRi® |
| IP Rating |
IPX8 |
| Installation Types |
Concrete / Fibreglass |
| Voltage |
12v |
| Wattage |
12watts |
| Ambient Operating Temperature |
5 °C to +40 °C |
| Warranty |
12 Month Manufacturers Warranty |
| |
|
|
|

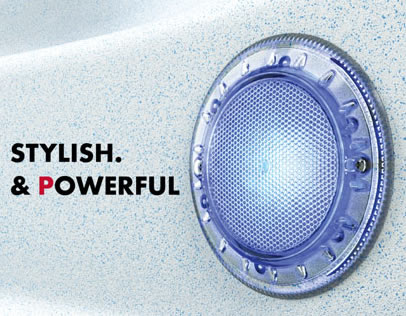

The Quantum WN Series is the ultimate underwater LED swimming pool light.
With its superior performance & light distribution coupled with this robust
construction and stylish looks, the Quantum WN Series is the only choice for
Concrete & Fibreglass pools.
- MULTI PLUS Now Available
- iRIS Compatible
- High intensity Ceramic Light Engine (LED) Technology
- Market leading brightness and efficiency
- Available in Blue, Green, White, Multi Colour Or MULTI Plus

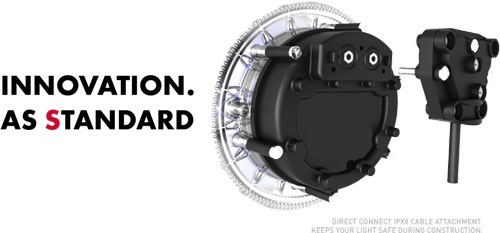

- Direct-Connect Patented detachable electrical connection
- Choice of rim colours including, Clear (standard), White, Grey or Black
- Suitable for Concrete and Fibreglass pools
- IPX8 waterproof rating
- Designed and manufactured in Australia
|
|

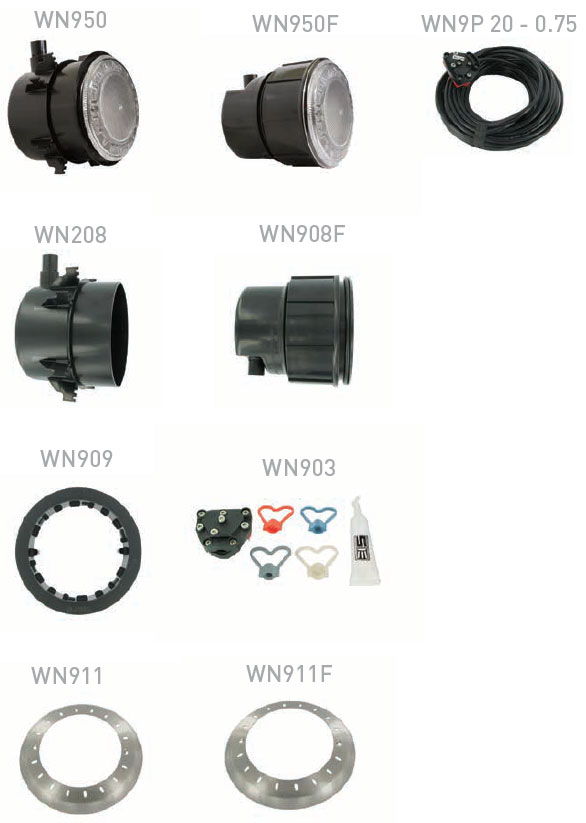

QUANTUM WN SERIES |
 |
CONCRETE POOLS
| Part Number |
Description |
| WNC L12 L1 |
1x WNC LIGHT + CONCRETE MOUNTING KIT |
| WNC L12 L2 |
1x WNC LIGHT + CONCRETE MOUNTING KIT + 20M CABLE |
| WNC L12 K1 |
1x WNC LIGHT + CONCRETE MOUNTING KIT + 20M CABLE + LV25 TRANSFORMER |
| WNC L12 K2 |
2x WNC LIGHT + CONCRETE MOUNTING KIT + 20M CABLE + DUAL LV50 TRANSFORMER |
FIBREGLASS POOLS
| Part Number |
Description |
| WNF L12 L1 |
1X WNF LIGHT + FIBREGLASS MOUNTING KIT |
| WNF L12 L2 |
1X WNF LIGHT + FIBREGLASS MOUNTING KIT + 20M CABLE |
| WNF L12 K1 |
1X WNF LIGHT + FIBREGLASS MOUNTING KIT + 20M CABLE + LV25 TRANSFORMER |
| WNF L12 K2 |
2X WNF LIGHT + FIBREGLASS MOUNTING KIT + 20M CABLE + DUAL LV50 TRANSFORMER |
|
|
|
|
|
|
|
|
